AceWin Co., Ltd.

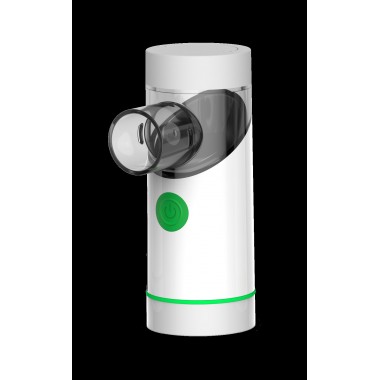

Portable Mesh Nebulizer

l   Working Principle: Vibrating Mesh

l   Vibrating Frequency: Approx. 130 KHz

l   Particle Size (MMAD): 1～5 µm

l   Nebulization Rate: > 0.35 ml/min

l   Medication Cup Capacity: 8 ml max.

l   Residual Volume: Less than 0.1 ml

l   Power Supply: Li-polymer battery (built-in, rechargeable), or Micro USB

l   Power Consumption: Approx. 3.5W

l   Device Dimension: 55(W) × 39(D) × 100(H) mm

l   Device Weight: Approx. 95g, including battery

l   Auto-off: Automatic switch-off after 10 minutes of use

l   Power Indication:

1.           Sufficient: keeps lighting

2.           Charging needed: keeps flash

l   Battery:

1.           The remaining capacity keeps more than 80% of the initial capacity after 500 cycles of use

2.           Charging time: about 1 hour (5V, 1A)

3.           Using time: about 12-15 times (2 hours) after each full charging

l   Operation Conditions:

1.           Temperature: 10℃～35℃

2.           Humidity: max 80% RH

l   Storage & Transport:

1.           Temperature:-10℃～60℃

2.           Humidity: max 80% RH

Accessory

mask x 2 ( adult & kid ), mouth piece connector, Micro USB cable, Li-polymer battery (built-in), color box, manual

(CE – Jan. 2018 or earlier)
